列表符号/编号和内容错位怎么办?

列表符号/编号和内容错位怎么办?

现象

分别设置中西文字体,导致符号/编号与内容错位

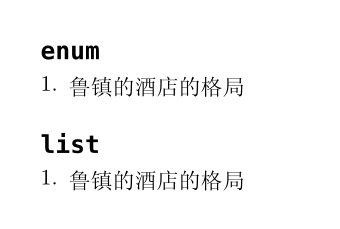

若分别设置了中西字体,那么即使只写汉字,enumlist 的符号/编号和内容也可能错位,例如下图:

typst
#set text(font: ((name: "New Computer Modern", covers: "latin-in-cjk"), "SimSun"))

= `enum`
+ 鲁镇的酒店的格局

= `list`
- 鲁镇的酒店的格局
Typst compiled image

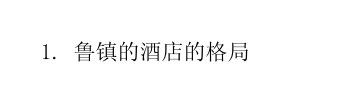

并且直接写编号完全正常:

typst
#[1.] 鲁镇的酒店的格局
Typst compiled image

已知存在问题的字体组合

  • 西文:New Computer Modern / Libertinus Serif
  • 中文:中易宋体/方正书宋/方正新书宋

复杂内容块或行内公式,导致符号/编号与内容错位

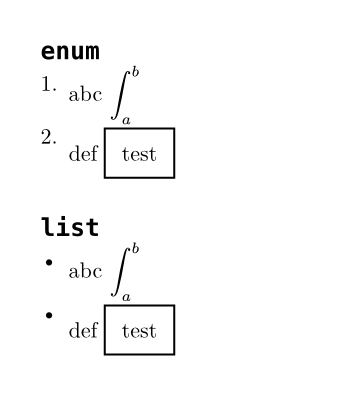

如果行内有额外高度的 box 或者行内公式,会撑高内容块的高度,导致符号/编号与内容错位,例如下图:

typst
= `enum`
+ abc $display(integral)_a^b$
+ def #box(stroke: 1pt, inset: 3mm, baseline: 3mm)[test]

= `list`
- abc $display(integral)_a^b$
- def #box(stroke: 1pt, inset: 3mm, baseline: 3mm)[test]
Typst compiled image

解决方法

推荐方法:使用 itemize

itemize 包可以解决大多数符号/编号与内容错位的问题

typst
#import "@preview/itemize:0.1.2" as el
#show: el.default-enum-list

#set text(font: ((name: "New Computer Modern", covers: "latin-in-cjk"), "SimSun"))

= `enum`

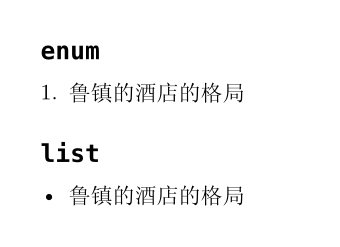

+ 鲁镇的酒店的格局

= `list`
- 鲁镇的酒店的格局
Typst compiled image
typst
#import "@preview/itemize:0.1.2" as el
#show: el.default-enum-list

= `enum`
+ abc $display(integral)_a^b$
+ def #box(stroke: 1pt, inset: 3mm, baseline: 3mm)[test]

= `list`
- abc $display(integral)_a^b$
- def #box(stroke: 1pt, inset: 3mm, baseline: 3mm)[test]
Typst compiled image

具体可参考其 Typst Universe 页面

其它方法

以下是早期文档中提及的其它方法,这里保留并折叠,可供额外参考:

点击展开

如果只写汉字

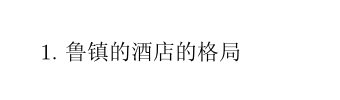

法一:数字也用中文字体

typst
#set text(font: "SimSun")
+ 鲁镇的酒店的格局
Typst compiled image

法二:修改编号对齐方式

typst
#set text(font: ((name: "New Computer Modern", covers: "latin-in-cjk"), "SimSun"))

= `enum`
#set enum(number-align: bottom)
+ 鲁镇的酒店的格局

= `list`
#set list(marker: ([•], [‣], [–]).map(align.with(horizon)))
- 鲁镇的酒店的格局
Typst compiled image

法三:修改汉字边框计算方式

typst
#set text(font: ((name: "New Computer Modern", covers: "latin-in-cjk"), "SimSun"))

#set text(top-edge: "ascender", bottom-edge: "descender")

= `enum`
+ 鲁镇的酒店的格局

= `list`
- 鲁镇的酒店的格局
Typst compiled image

不过这样会在视觉上增大行距,详见文字外框的解释

如果列表内容复杂

来自 @OrangeX4 的解决方案

typst
/// Align the list marker with the baseline of the first line of the list item.
///
/// Usage: `#show: align-list-marker-with-baseline`
#let align-list-marker-with-baseline(body) = {
  show list.item: it => context {
    let current-marker = {
      set text(fill: text.fill)
      if type(list.marker) == array {
        list.marker.at(0)
      } else {
        list.marker
      }
    }
    let hanging-indent = measure(current-marker).width + .6em + .3pt
    set terms(hanging-indent: hanging-indent)
    if type(list.marker) == array {
      terms.item(
        current-marker,
        {
          // set the value of list.marker in a loop
          set list(marker: list.marker.slice(1) + (list.marker.at(0),))
          it.body
        },
      )
    } else {
      terms.item(current-marker, it.body)
    }
  }
  body
}

/// Align the enum marker with the baseline of the first line of the enum item. It will only work when the enum item has a number like `1.`.
///
/// Usage: `#show: align-enum-marker-with-baseline`
#let align-enum-marker-with-baseline(body) = {
  show enum.item: it => context {
    if not it.has("number") or it.number == none or enum.full == true {
      // If the enum item does not have a number, or the number is none, or the enum is full
      return it
    }
    let weight-map = (
      thin: 100,
      extralight: 200,
      light: 300,
      regular: 400,
      medium: 500,
      semibold: 600,
      bold: 700,
      extrabold: 800,
      black: 900,
    )
    let current-marker = {
      set text(
        fill: text.fill,
        weight: if type(text.weight) == int {
          text.weight - 300
        } else {
          weight-map.at(text.weight) - 300
        },
      )
      numbering(enum.numbering, it.number) + h(-.1em)
    }
    let hanging-indent = measure(current-marker).width + .6em + .3pt
    set terms(hanging-indent: hanging-indent)
    terms.item(current-marker, it.body)
  }
  body
}

#show: align-list-marker-with-baseline
#show: align-enum-marker-with-baseline

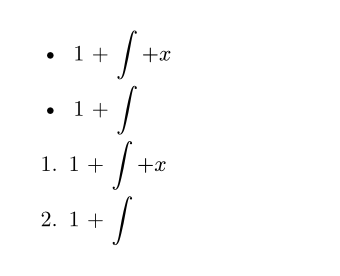

- 1 + $display(integral) + x$
- 1 + $display(integral)$

1. 1 + $display(integral) + x$
2. 1 + $display(integral)$
Typst compiled image

参考阅读

修复列表的终极方案 页面中提及了另一种实现符号/编号与内容正确对齐的方法,其实现效果在默认情况下会使内容延伸到编号下方的空白处,可另行参考。

相关 issue:List and enum markers are not aligned with the baseline of the item's contents · Issue #1204 · typst/typst
